Elecnova · Liquid cooling · 10-Fuß-Container

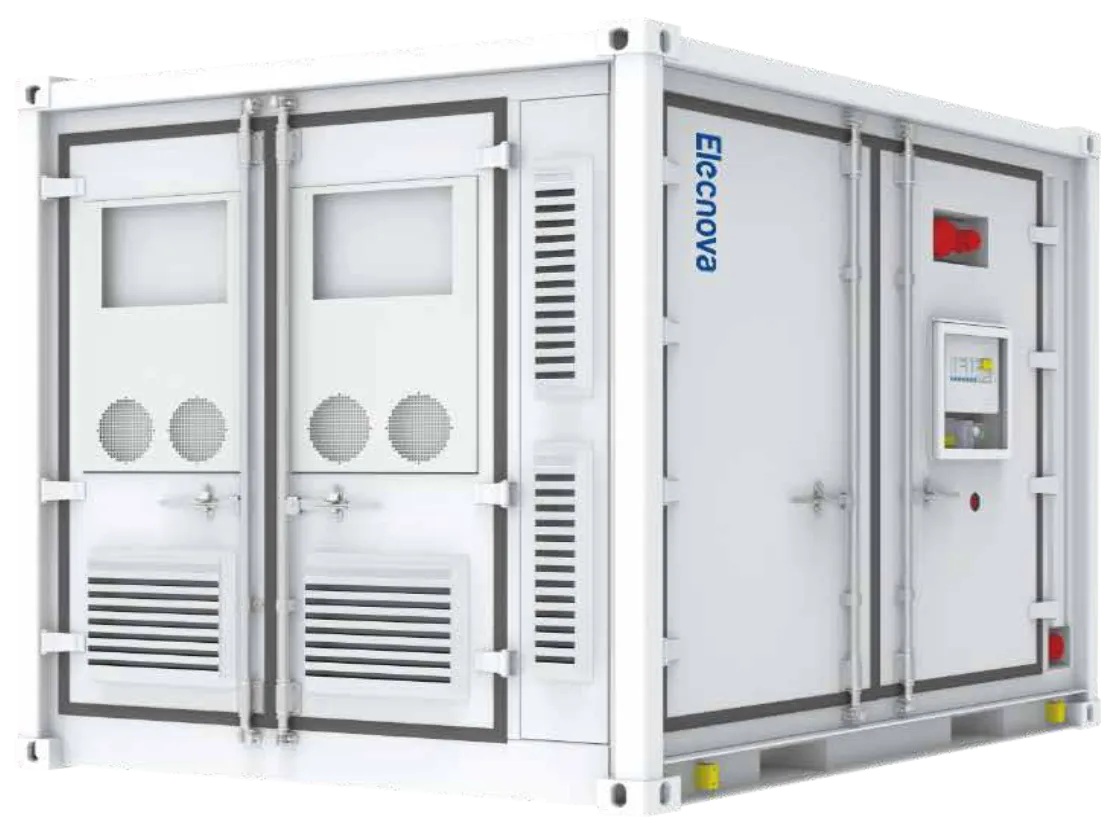

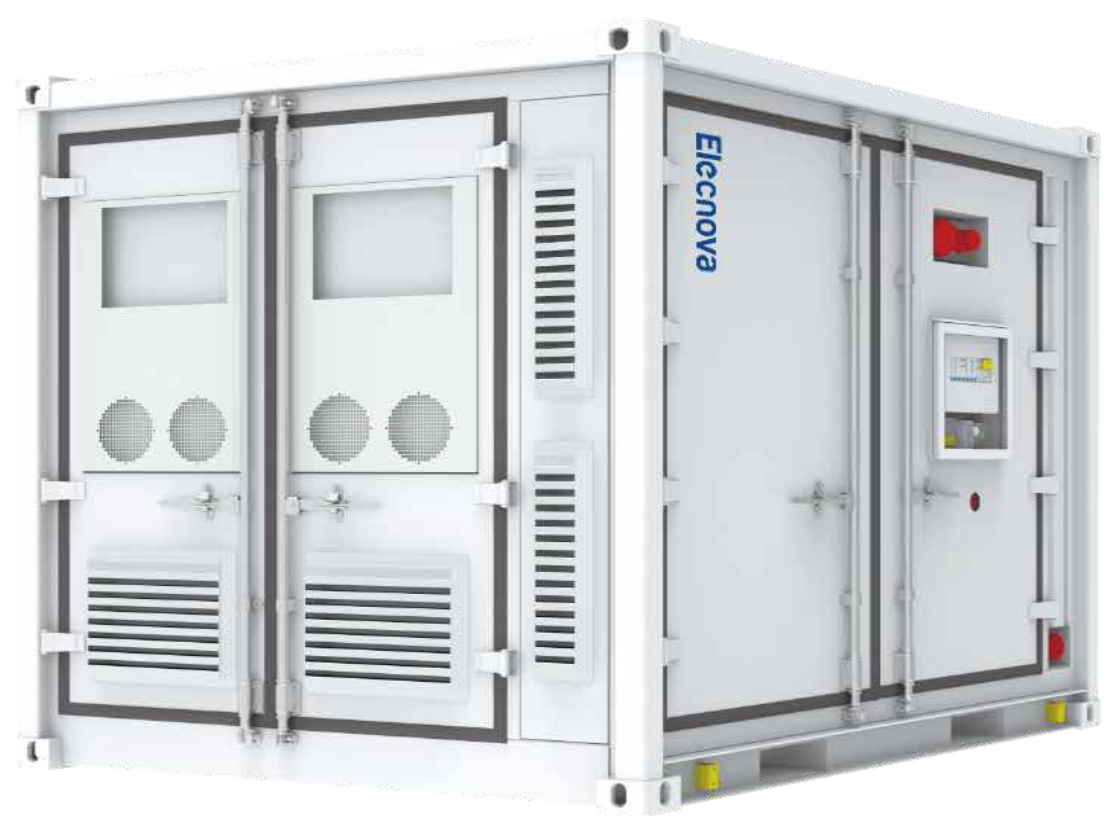

Elecnova ECO-E10FT1044LP-2
Highly integrated 10 ft storage container with integrated STS: 1,044 kWh, 500 kW, seamless on/off-grid transfer in under 20 ms, interfaces for diesel and PV.
Technical data
| System | |
|---|---|
| Nominal capacity | 1.04 MWh |
| Cell type | LFP 314 Ah |
| Cooling | Liquid cooling |
| Form factor | 10-Fuß-Container |
| Cycle life | 8,000 |
| Max. depth of discharge | 100 % |
| Grid & power | |
| AC power | 500 kW |
| Grid voltage | 400 V |
| On/off-grid switching | Yes |
| Direct PV input | No |
| Installation | |
| Dimensions (W×D×H) | 2991×2438×2591 mm |
| Weight | 14 t |
| IP rating | IP54 |
| Fire protection | Aerosol (Pack- und Containerebene), Wassersprühsystem |
Technical data per the manufacturer's datasheet; binding values depend on configuration and project.
Highly integrated 10 ft storage container with an integrated STS: 1,044 kWh and 500 kW, with seamless on/off-grid transfer in under 20 ms and dedicated interfaces for diesel generators and PV inverters. The recommended maximum backup load is 350 kW (70 % of rated output).
